Bag on Roll Machine-1

Model - STR-V4 Series

Auto-Change Core Bag on Roll Making Machine Servo Co-speed system ( in-line extruder possibility)

MACHINE FEATURE:

Easy change the bag length and tension by touch screen digital setting.
Rotary Sealing and Perforation designed make fast speed and smoothly work, Tensionless sealing; Low noise running and Long life perforation knife designed.
Every knife can use much more than 50000000 times, maximum up to 80000000 times.
Printing mark function possibility and Customized Perforated pitch. (optional)
Heavy duty lifting auto-unwind with Edge Position Control of OFF-LINE type.
Automatic speed follow by in-feed dancing device of IN-LINE type.
Easy to operate and maintain full-featured surveillance system by HMI.
Easy change designed for different core size of automatic rewind machine.
Micro tension system for thin film(min. 5 micrometer) and very easy to tear.
Auto Unloading when products roll at full position and motor edge position adjust.
Two line rewind with hot slitting system for double products possibility. (extra type)
Two line rewind with two line unwind for double products possibility. (extra type)

SPECIFICATIONS: P.S. Customization could be available.

Model		Bag Width(mm) line × W x Dia.	Bag Length/ Film thicknes	Capacity (Meter /min)
OFF- LINE	STR-400V4-A21	1 x 230~375 Roll max.130	200~2000 / 0.005~0.018	Max. 120M/ line/ minute
	STR-500V4-A21	1 x 330~475 Roll max.130	200~2000 / 0.005~0.018	Max. 120M/ line/ minute
	STR2-800V4-A22	2 x 220~350 Roll max.130	200~2000 / 0.005~0.018	Max. 110M/ line/ minute
IN- LINE	STR-400V4i-A21	1 x 230~375 Roll max.130	200~2000 / 0.005~0.018	Max. 120M/ line/ minute
	STR-500V4i-A21	1 x 330~475 Roll max.130	200~2000 / 0.005~0.018	Max. 120M/ line/ minute
	STR2-800V4i-A22	2 x 220~350 Roll max.130	200~2000 / 0.005~0.018	Max. 110M/ line/ minute

Specifications are subject to change without notice.

Enquiry Now

* Required

To: SHENG-FON PLASTIC MACHINE CO., LTD.

*Subject:

Enquiry Details

Incoterm:

Payment:

Initial Order Quantity:

Sample Terms:

*Message:

Please provide following contact details

Title:

Mr.

Ms.

Mrs.

*First Name:

*Last Name:

Company:

*Country/Territory:

Address:

*E-mail:

Telephone:

Fax:

URL:

*Prove code:

Click Refresh Prove code

Click Refresh Prove code

Products List

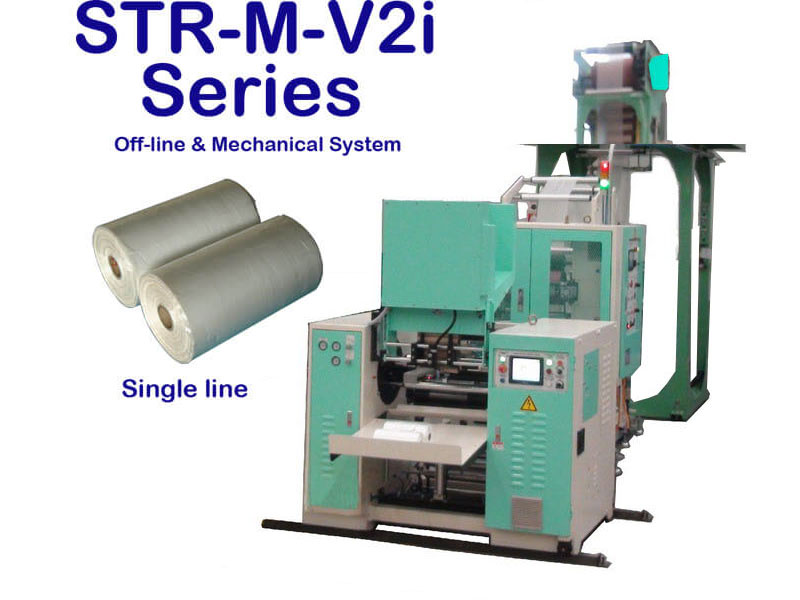

Bag on Roll Machine-2 - STR-M-V2i Series

Bag on Roll Machine-2

STR-M-V2i Series

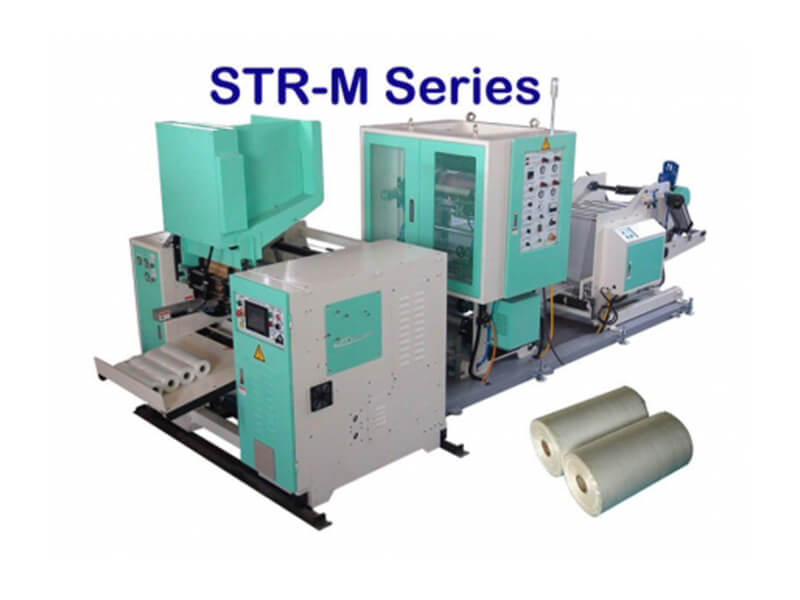

Bag on Roll Machine-3 - STR-M Series

Bag on Roll Machine-3

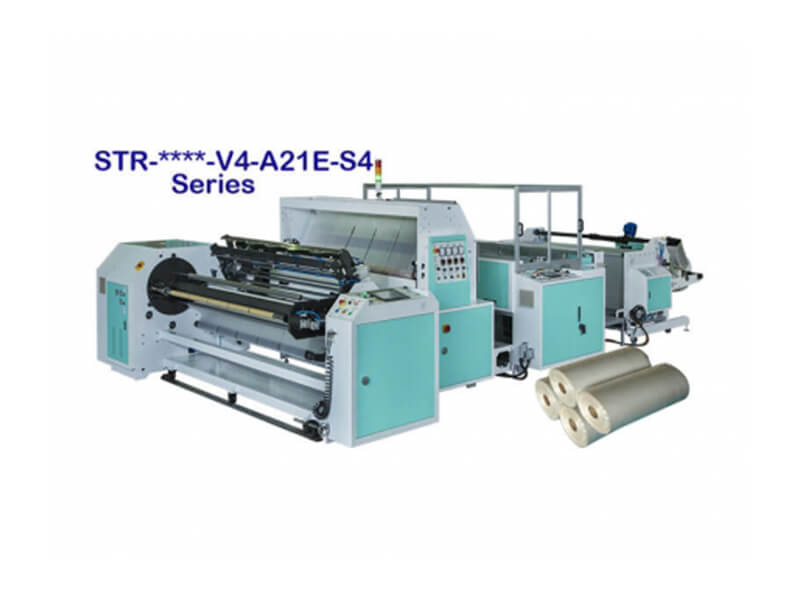

Bag on Roll Machine-9 - STR- ****V4-A21E-S4 Series

Bag on Roll Machine-9

STR- ****V4-A21E-S4 Series

Bag on Roll Machine-10 - STR- ****S-A21E-Sn Series

Bag on Roll Machine-10

STR- ****S-A21E-Sn Series

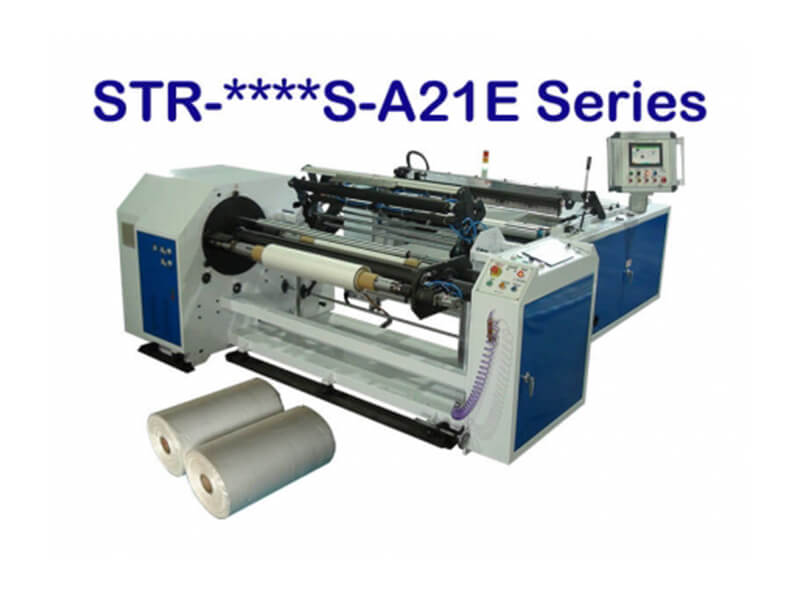

Bag on Roll Machine-11 - STR-****S-A21E Series

Bag on Roll Machine-11

STR-****S-A21E Series

Bag on Roll Machine-12 - STR-****S-A21J Series

Bag on Roll Machine-12

STR-****S-A21J Series

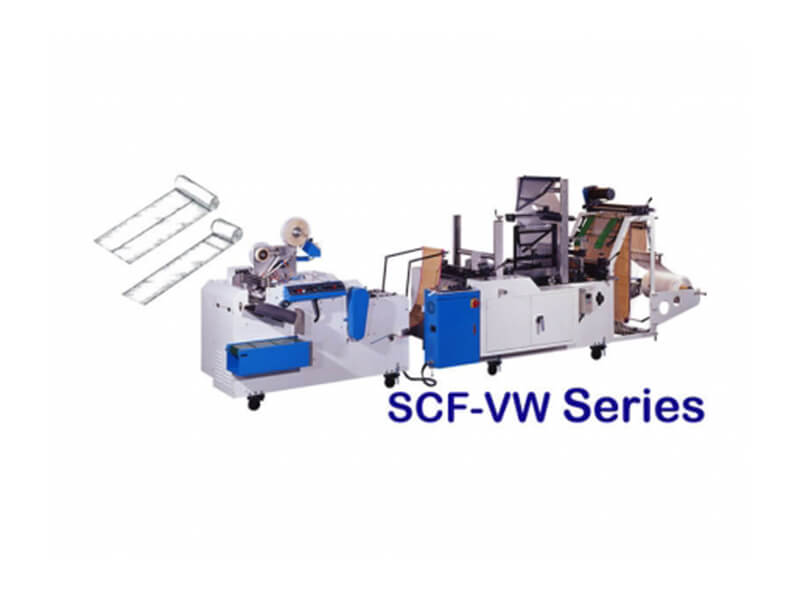

Bag on Roll Machine-6 - SCF-VW

Bag on Roll Machine-6

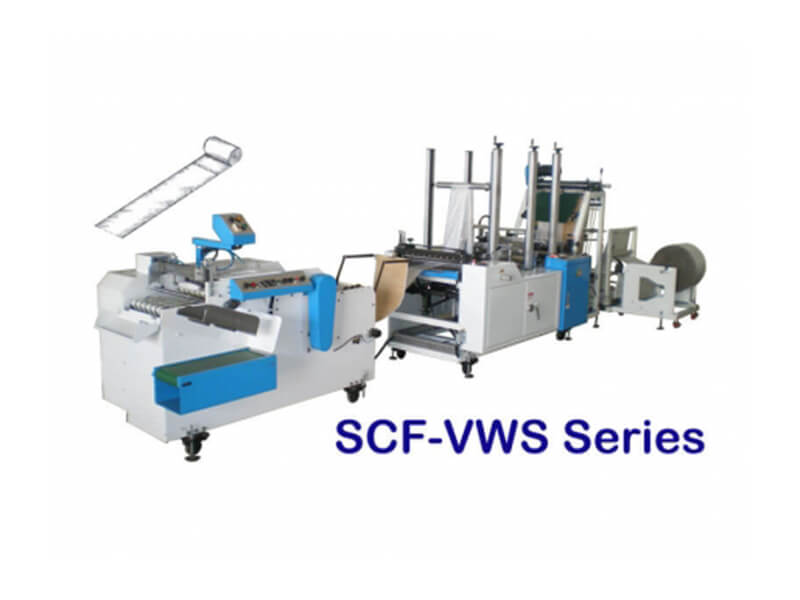

Bag on Roll Machine-7 - SCF-VWS

Bag on Roll Machine-7

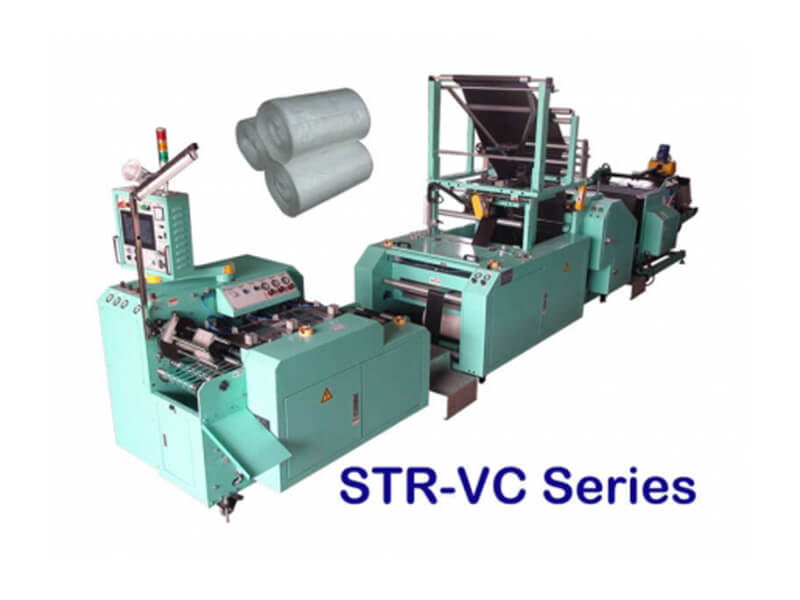

Bag on Roll Machine-4 - STR-VC Series

Bag on Roll Machine-4

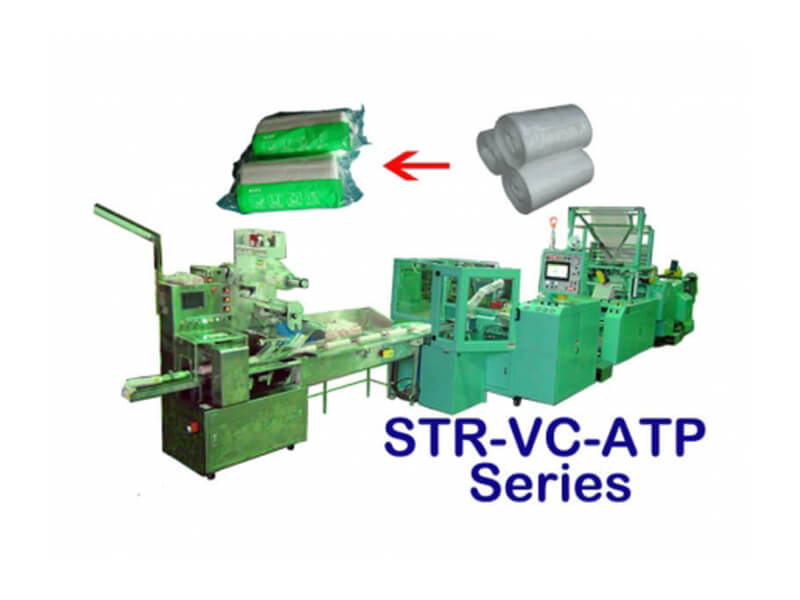

Bag on Roll Machine-5 - STR-VC-ATP Series

Bag on Roll Machine-5

STR-VC-ATP Series

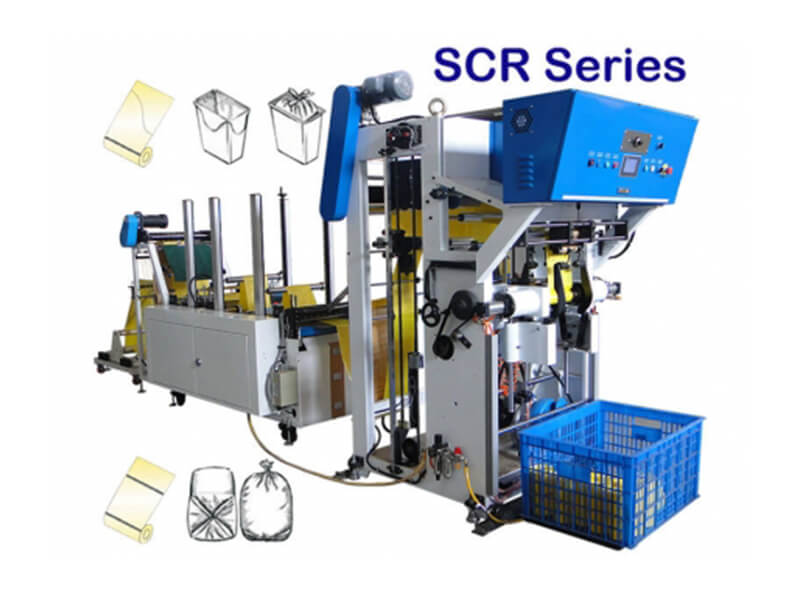

Bag on Roll Machine-8 - SCR Series
